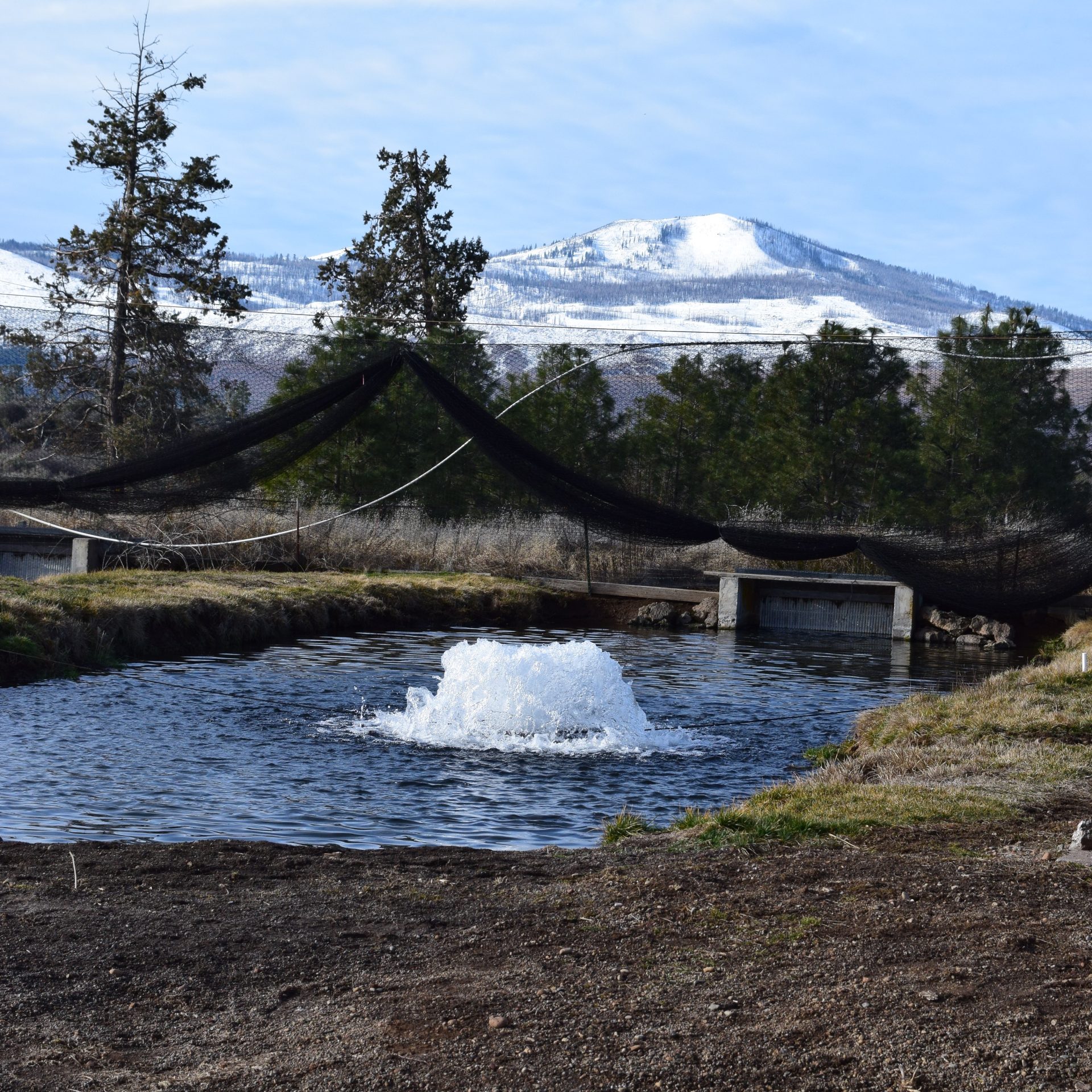

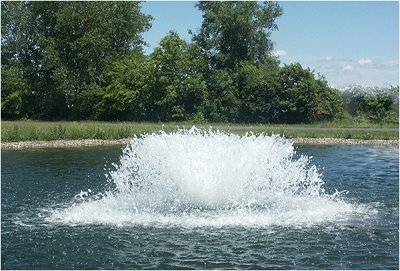

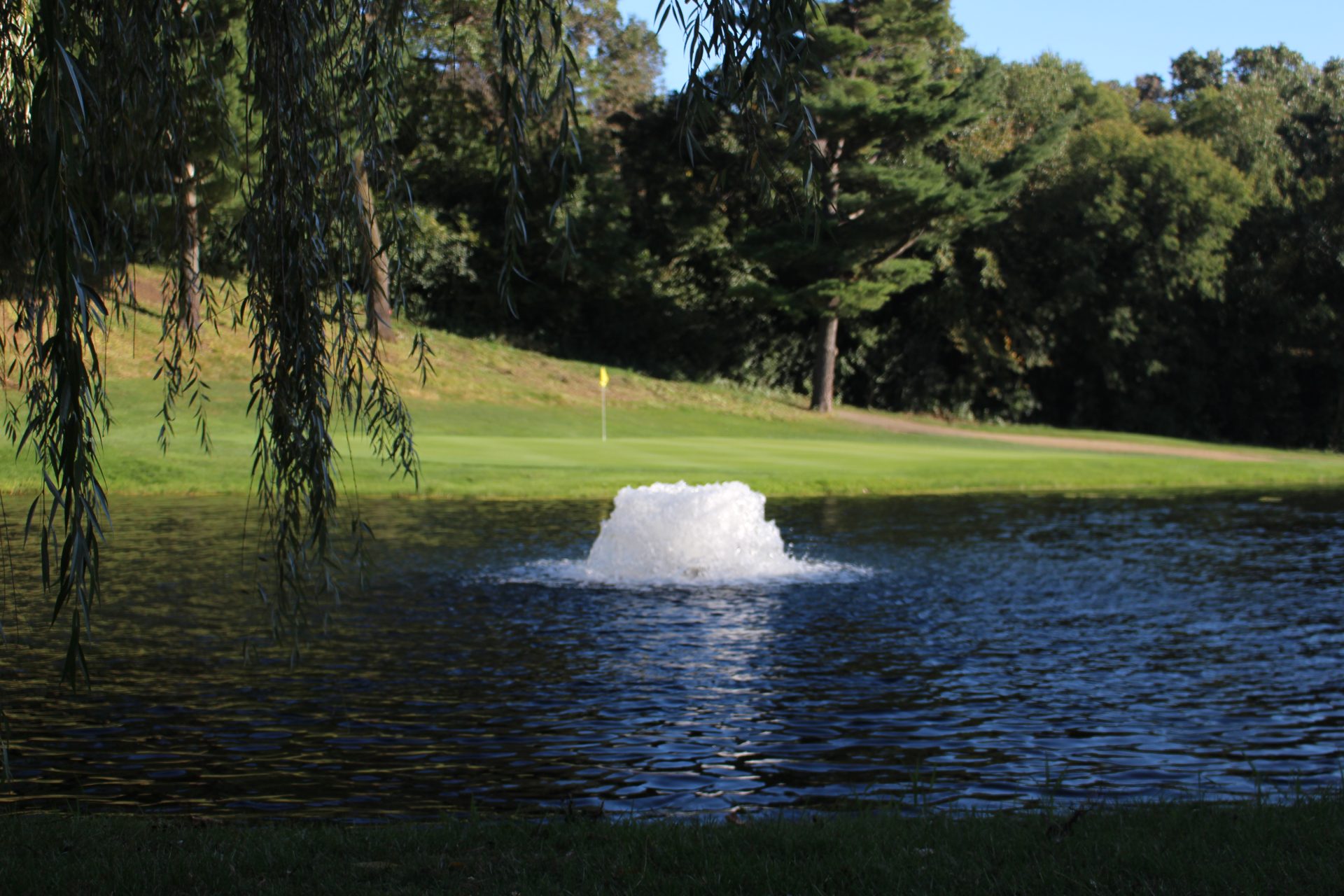

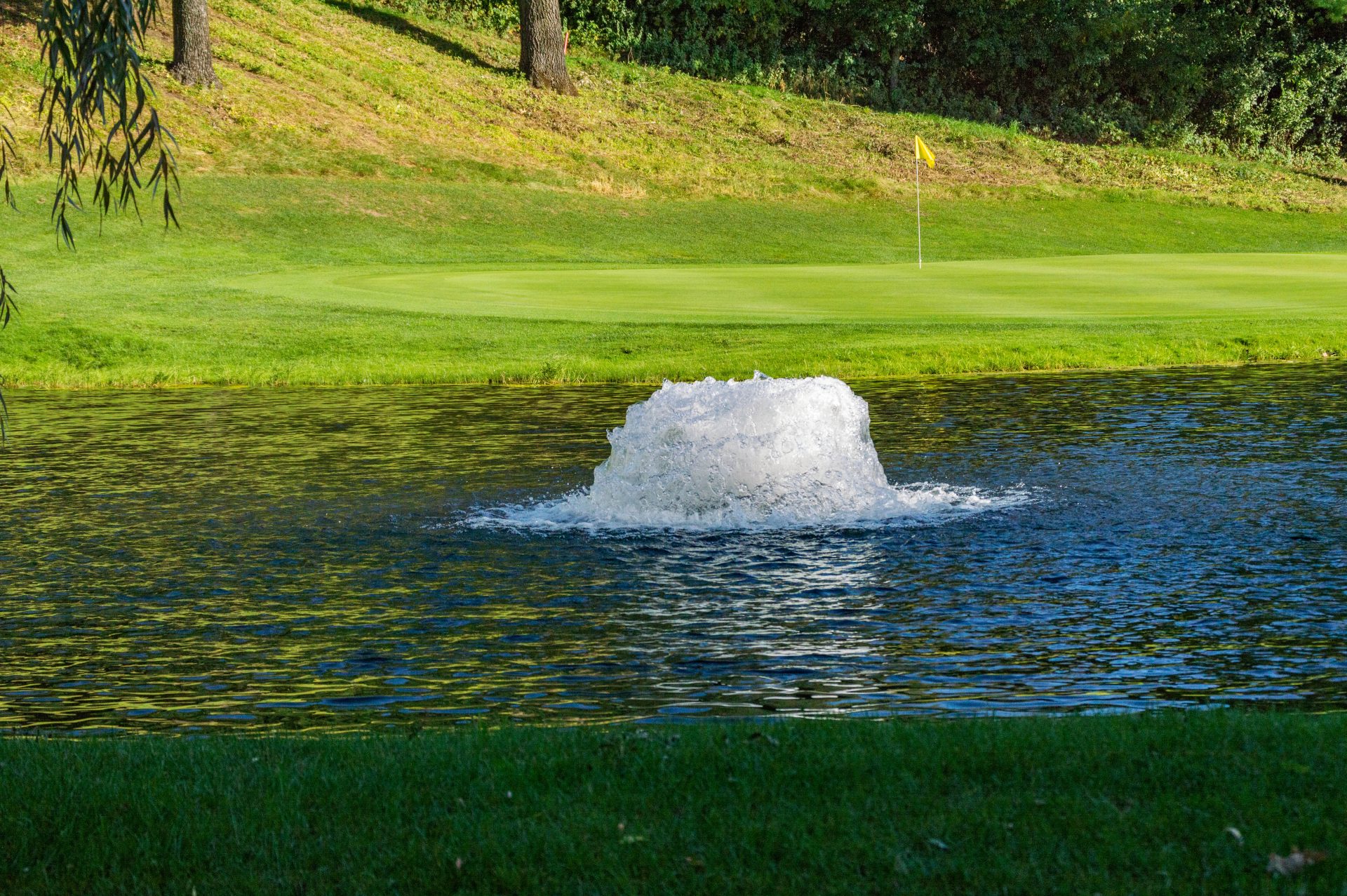

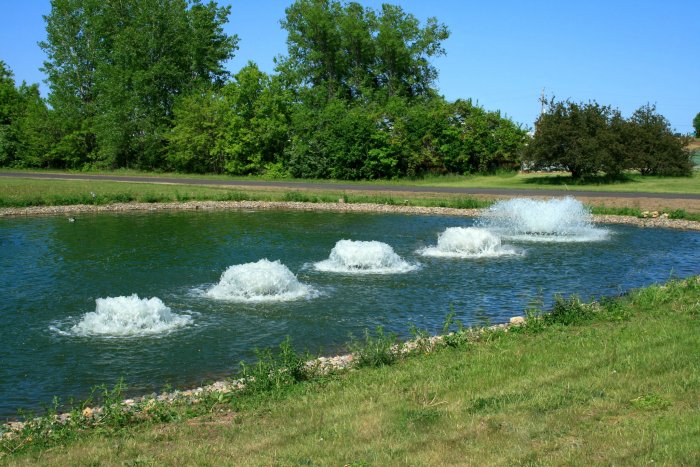

The 5.1AF delivers the highest oxygen transfer in the single-phase AF lineup, making it an excellent choice for large lakes, marinas, and wastewater applications. Designed to move substantial volumes of water, it provides powerful circulation and dependable performance in demanding environments. Control panel optional.
What’s Included:
- Motor unit
- Float
- Power cord
- 3 Mooring ropes
Specifications
| Feature | Details |
| Model | 5.1AF |
| Horsepower | 5 HP |
| Voltage / Phase | 208-240V, Single Phase |
| Amps | 18 A |
| Wattage (Max) | 4,320 W |
| Minimum Operating Depth | 26″ |
| Suggested Pond Size | Up to 5 acre |
| Power Cord Options | 50′, 100′, 150′, 200′, 250′, 300′, 400′ |
| Spray Pattern Height/Width | 60″ H × 148″ W |
| Mooring Ropes Included | 3 |
| Bottom Screen | Optional |
| Control Panel (Sold Separately) | C-230 or C-95 if installing Optional lighting |
| Optional Lighting |

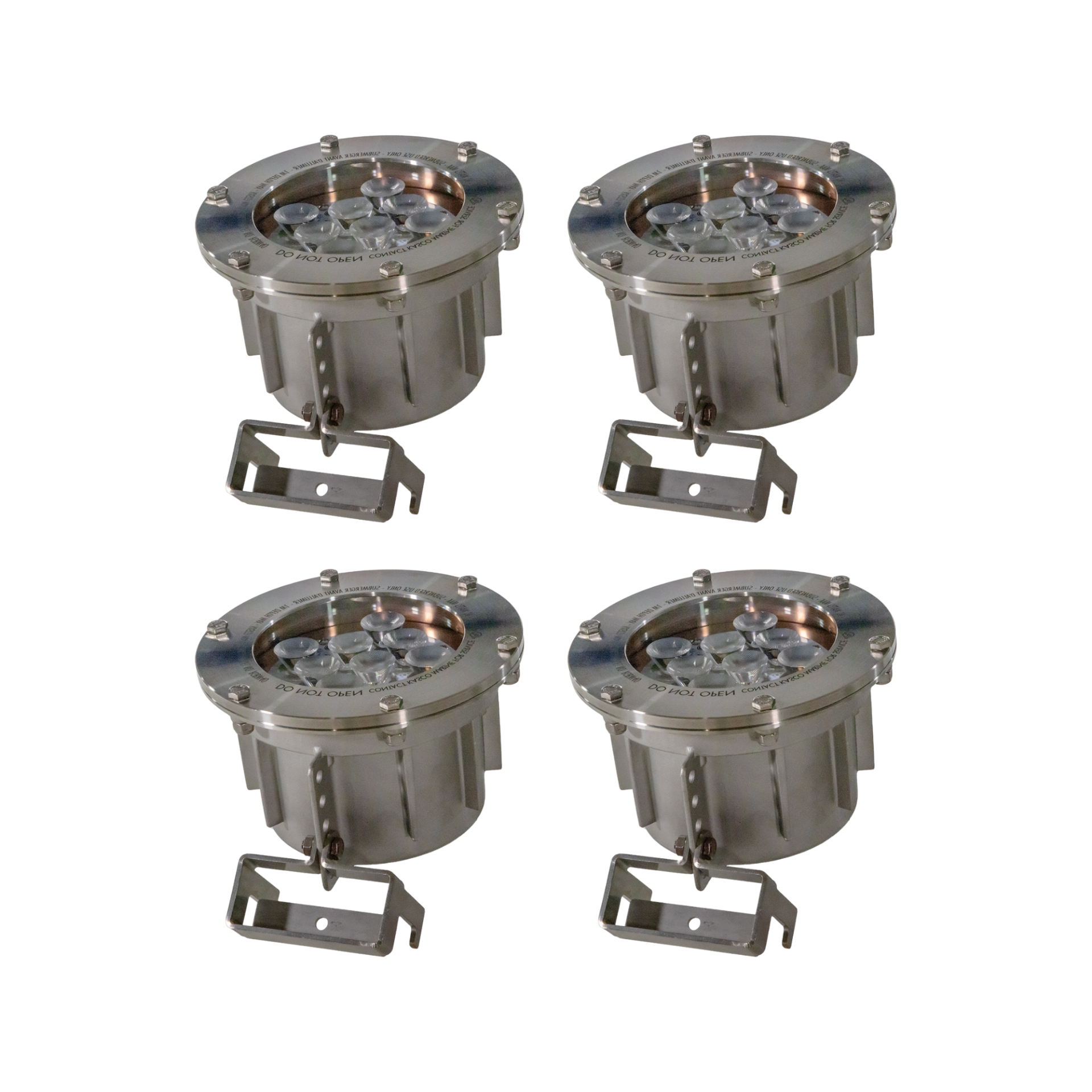

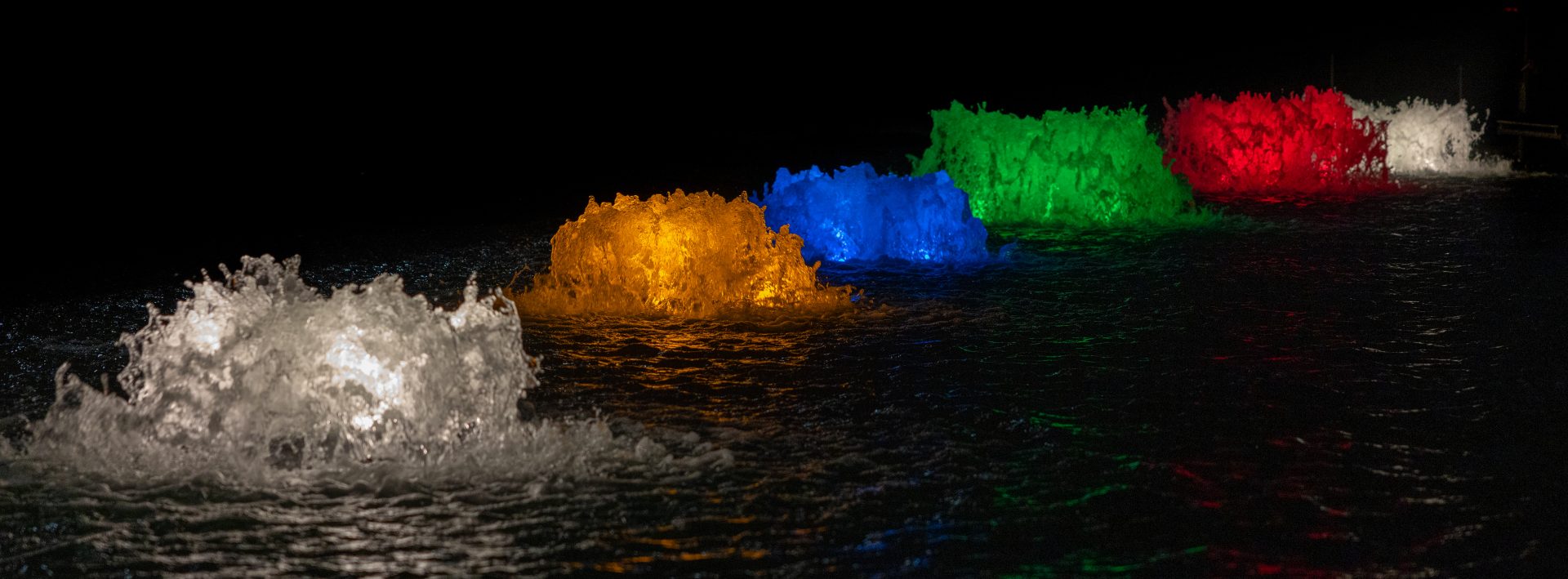

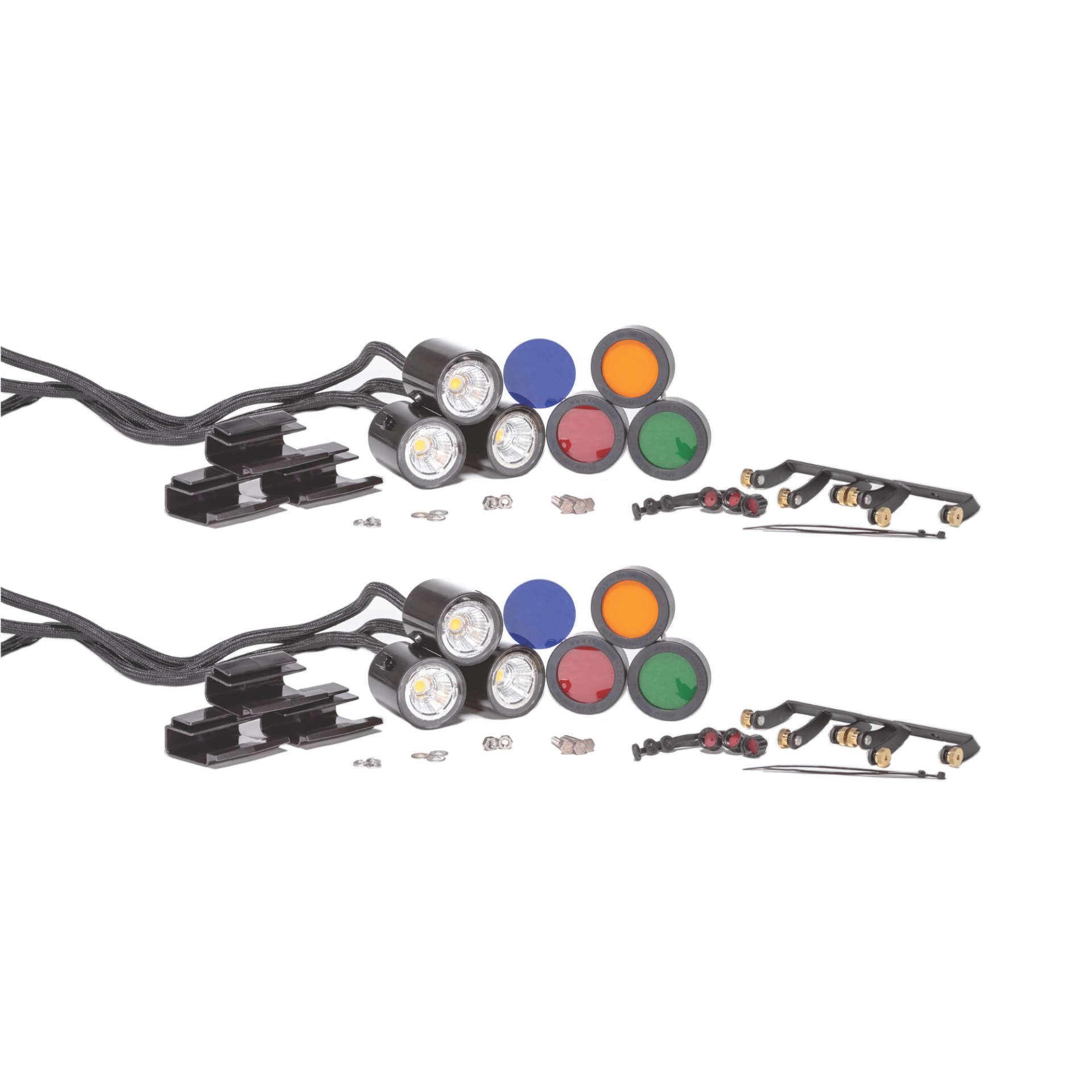

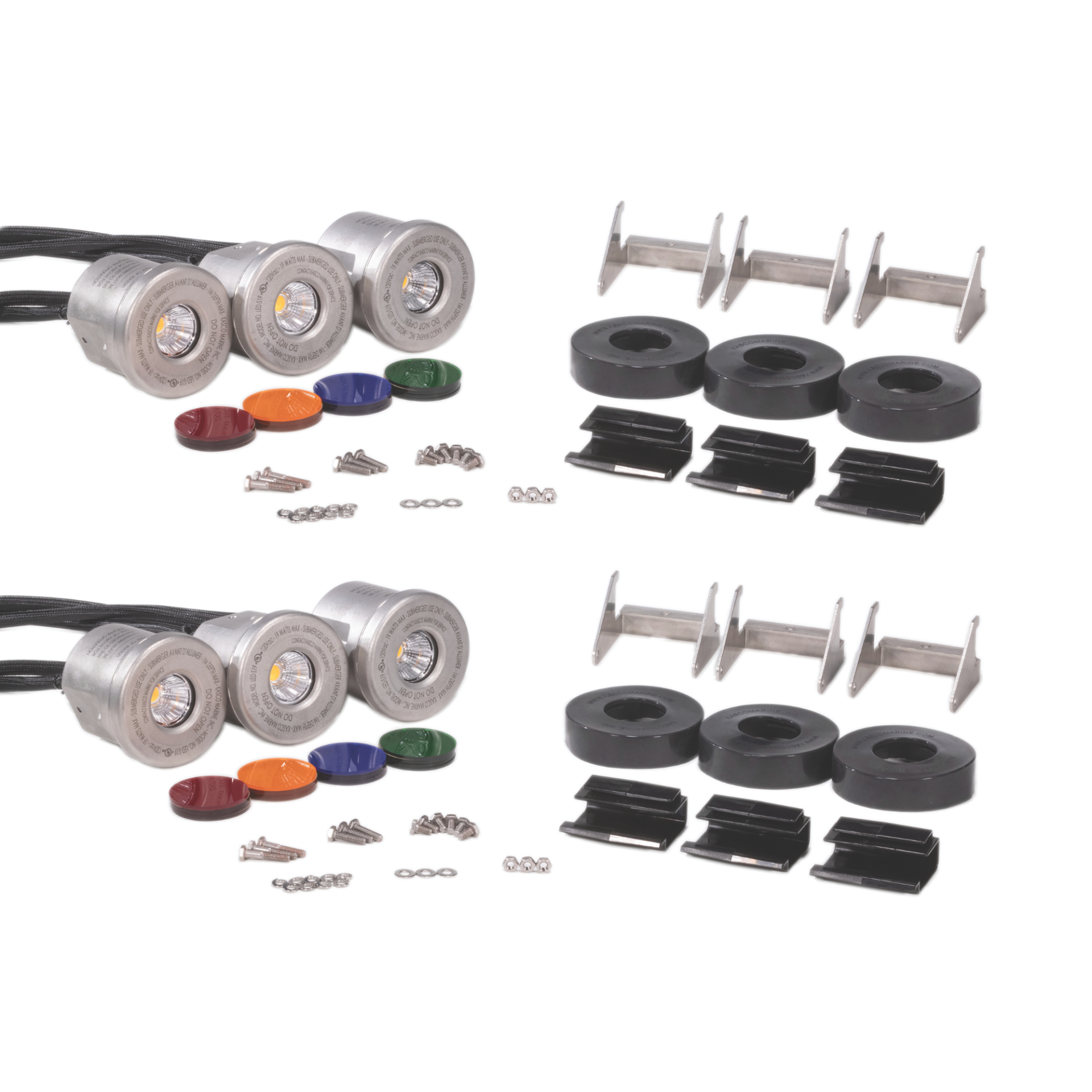

Composite LED Light Kit (6 Fixture), Stainless Steel LED Light Kit (6 Fixture), RGBW Lighting Tool Kit (4 Fixture) |
| Daily Operating Cost (24 hrs/day)* | ~$10.37 |
| Warranty | 3-Year |
|
*Estimated cost based on average U.S. commercial electricity rate of $0.10 per kWh. Actual costs may vary. Use our Operating Cost Calculator for a more precise estimate. |
|
